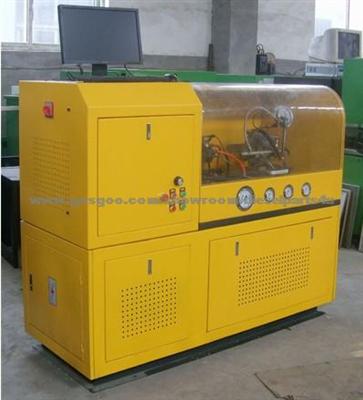

It is the Updation edition of CR (II)
1)FEATURES:
1. Industrial computer control, WINDOWS operation system, fuel quantity measured by sensor and displayed on 19” screen
2. BOSCH CP3 pump provide pressure 0-2000 bar, over-pressure protection function, and automatically stop if over 1600 bar
3. Closed loop control, automatically adjust rail pressure, undulating value: ±1MPA
4. Upgrading software with built-in standard data of more than 400 types of Common Rail Injectors. Users can search, save, change, modify test data
5. Support BOSCH, DENSO, DELPHI, SIEMENS, fulfill remote breakdown diagnosis
6. Short circuit protection function
7. Forced cooling for fuel temperature control by compressor (optional)
8. Support internet connection, can fulfill equipment remote control (optional)
9. synthetic glass protection, safe and easy operation, low noise
2)PARAMETERS
1. Injection test frequency: 50-3000 rpm
2. Pulse ms
3. Continuous injection time: 01000
4. Fuel temperature:40±2
5. Rail pressure: 02000 bar
6. Test fuel filter precision: 5μ
7. Input power: 380V-three phase or 220V-three phase
8. Test bench rotation speed: 0-4000 rpm/min
9. Fuel tank volume: 60L
10. Flywheel inertia: 0.8KG.M2
11. Center height: 125MM
12. Output power: 11KW,15KW or negotiation
13. Size(mm): 2650x1350x2250mm
14. Weight: 1300 kg
|
|
3)FUNCTION
|
|
Test Common Rail Injector (CRI)
|
Test Common Rail Pump (CRP)
|
|
1.Test range: BOSCHDENSODELPHISIEMENS
2.Test two CRI at same time
3.Test and adjust CRI pre-injection, start-injection, max injection, fuel back, injection uniformity, sealing, and wear-in
4.Adjust freely injection frequency and time
5.Adjust injector drive signal and frequency
|
1.Test range: BOSCHDENSODELPHISIEMENS
2.Test DENSO double plunger HPO pump
3.Test CRP inner pressure, ratio electromagnetic valve, fuel transfer pump, flow, output quantity and pressure, sealing and wear-in
|
|
