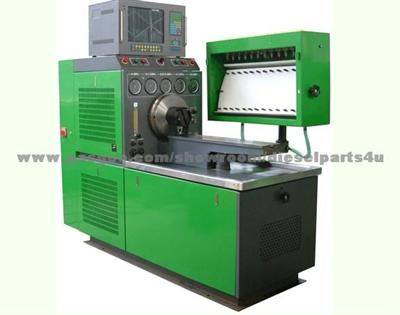

Fuel Injection Pump & Distributor Pump Test Bench 12PSB-HTD

Product Name:

Fuel Injection Pump & Distributor Pump Test Bench 12PSB-HTD

Application:

Universal

Product Description:

1)Function
1. Test fuel supply quantity and uniformity in every cylinder
2. Test fuel supply dot and space angle of fuel injection pump
3. Test and adjust the performance of speed governor
4. Test the performance of distributor pump
5. Test the performance of press compensator
6. Test the fuel back quantity of distributor pump
7. Test the performance of electromagnetic valve in distributor pump
8. Test the inner pressure of distributor pump under various regulated rotation speed
9. Test advance angle(optional)
10. Test the sealing performance of fuel injection pump
11. Test rack travel(optional)


    2)Features
1. Primary motor frequency changing speed
2. Large output torque, small fall speed value, high precision measurement
3. Ten kind of rotation speed presetting
4. Digital display of rotation speed, counting, temperature
5. Automatic control of fuel temperature
6. Positive and negative system with air resource
7. D.C.Supply 12V,24V
8. Protection system of over pressure, over load and over heat

 3)Parameters
1.Rotation speed:0-4000 rpm/min
2. Fuel Tank volume: 60L
3. Automatic control of fuel temperature: 40±2
4. Test fuel filtering precision: 5
5. D.C. supply: DC12V/24V
6. Fuel supply pressure:
Low pressure: 0-0.4MPA
High pressure: 0-4MPA
7. Air pressure: 0.0.3MPA
8. Power supply: 380V-three phase or 220V-three/one phase
9. Flywheel inertia: 0.8KG M2
10. Center height: 125MM
11. Output power: 5.5KW,7.5KW,11KW,15KW or negotiation
12. Size: 2350x1230x1850mm
13. Weight (kg):1200kg
