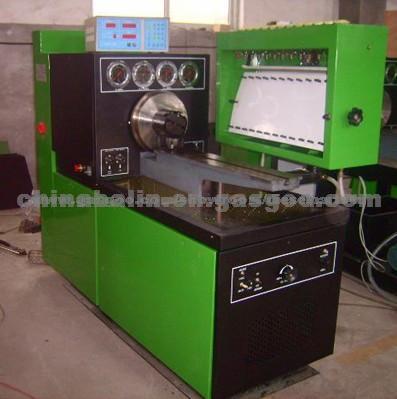

Fuel Injection Pump Test Bench 12PSB-HTA

Product Name:

Fuel Injection Pump Test Bench 12PSB-HTA

Application:

Universal

Product Description:

1)FUNCTIONS
1. Test fuel supply in every cylinder under different rotation speed 2.Test distributor pumps inner and fuel back pressure 3.Test the solenoid of distributor pumps
4. Test every cylinders time
5. Test the performance of mechanical speed governor
6. Test sealing performance of fuel injection pump
7. Test the performance of pressure compensators
8. Test the performance of pneumatic speed governor
9. Test negative pressure performance of pneumatic film speed governor

2)FEATURES
1. Primary motor frequency changing speed
2. Large output torque, small fall speed value, high precision measurement
3. Ten kind of rotation speed presetting
4. Digital display of rotation speed, counting, temperature
5. Automatic control of fuel temperature
6. Positive and negative system with air resource
7. D.C.Supply 12V,24V
8. Protection system of over pressure, over load and over heat


3)PARAMETERS
1.Rotation speed:0-4000 rpm/min
2. Fuel Tank volume: 60L
3. Automatic control of fuel temperature: 40±2
4. Test fuel filtering precision: 5
5. D.C. supply: DC12V/24V
6. Fuel supply pressure:
Low pressure: 0-0.4MPA
High pressure: 0-4MPA
7. Air pressure: 0.0.3MPA
8. Power supply: 380V-three phase or 220V-three/one phase
9. Flywheel inertia: 0.8KG M2
10. Center height: 125MM
11. Output power: 5.5KW,7.5KW,11KW,15KW or negotiation
12. Size: 1750x1150x1650mm
13. Weight (kg):1000kg
